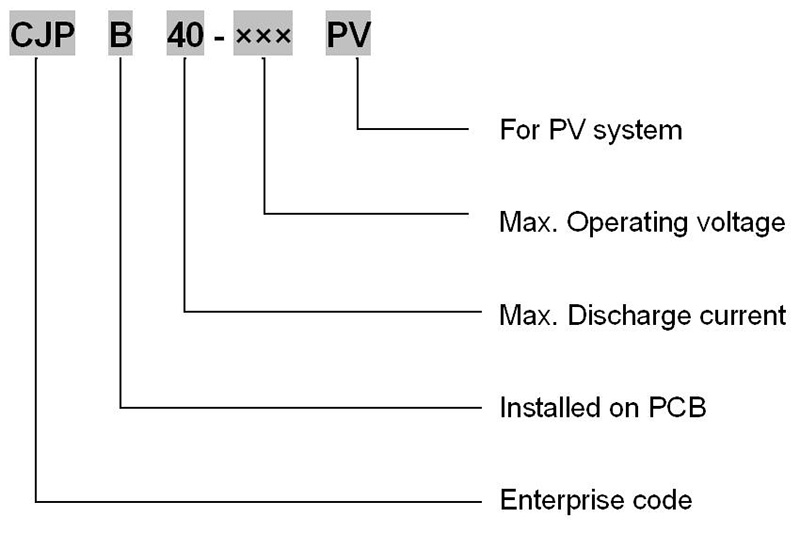

Model

CJPB-40-600PV

CJPB-40-670PV

CJPB-40-750PV

CJPB-40-900PV

Max. continuous operating voltage (Uc )

460V AC

510V AC

625V AC

760V AC

Max. PV operating voltage ( Ucpv  )

600 V

670 V

750 V

900 V

Nominal discharge current ( In)

20kA  (8/20μs)

15kA  (8/20μs)

Max. discharge current ( Imax)

40kA  (8/20μs)

Voltage protection level (Up)

≤1.8 kV

≤2.0 kV

≤2.5 kV

≤3.0 kV

Current withstand short circuit PV ( Iscpv)

200A

SPD failure behavior

开路失效模式（OCFM）

IECtest

Ⅱ

ULtest

Type 4

Response time( tA)

＜25 ns

Protection rating

IP20

Housing material

UL94 V-0

Working status

Green/ Normal; Red/defect

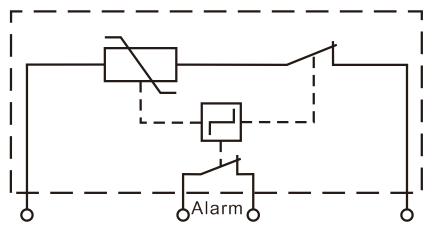

Remote signaling

NC/Normal ; NO/Defect

Wave soldering temperature

Max. 260℃/5 sec

Number of port

One-port

Place of use

indoor，PCB

Ambient temperature

-40℃ ~ +85℃

Permissible humidity

5%~ 95%（+25℃）

Standards compliance

RoHS2.0
