Model

CJPB-20-600PV

CJPB-20-670PV

CJPB-20-900PV

Max. continuous operating voltage (Uc )

 460V AC

510V AC

760V AC

Max. PV operating voltage ( Ucpv  )

600 V

670 V

900 V

Nominal discharge current ( In )

10kA  (8/20μs)

Max. discharge current ( Imax )

20kA  (8/20μs)

Voltage protection level (Up )

≤1.7 kV

≤1.8 kV

≤2.8 kV

Current withstand short circuit PV ( Iscpv )

100A

SPD failure behavior

开路失效模式（OCFM）

IEC test

ClassⅡ

UL test

Type 4

Response time( tA )

＜25 ns

Protection rating

IP20

Housing material

UL94 V-0

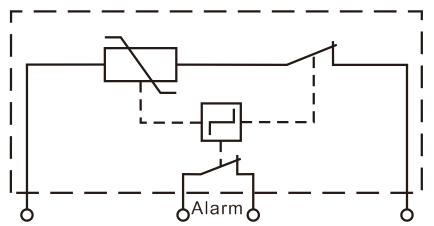

Remote signaling

NC/Normal ; NO/Defect

Wave soldering temperature

Max. 260℃/5 sec

Number of port

One-port

Place of use

indoor，PCB

Ambient temperature

-40℃ ~ +85℃

Permissible humidity

5% ~ 95%（+25℃）

Standards compliance

RoHS2.0
