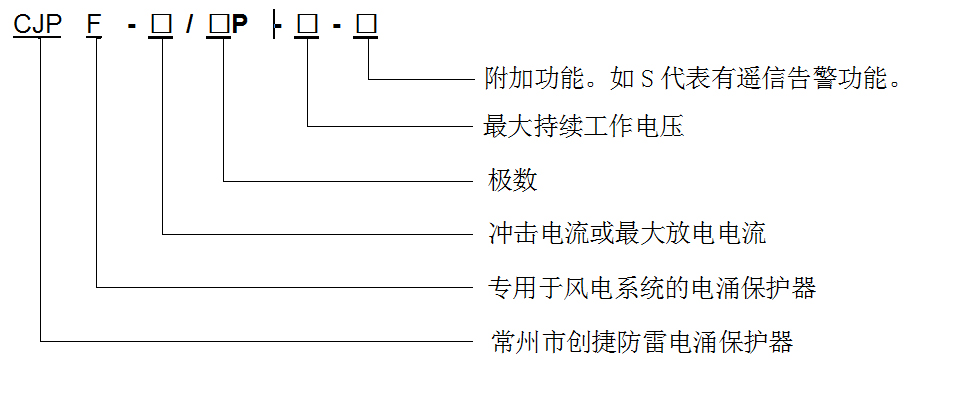

model

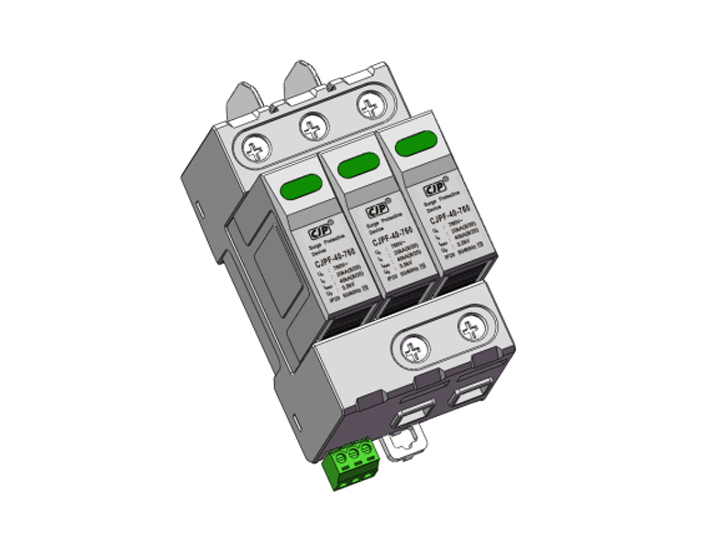

CJPF-40/3P-760-S

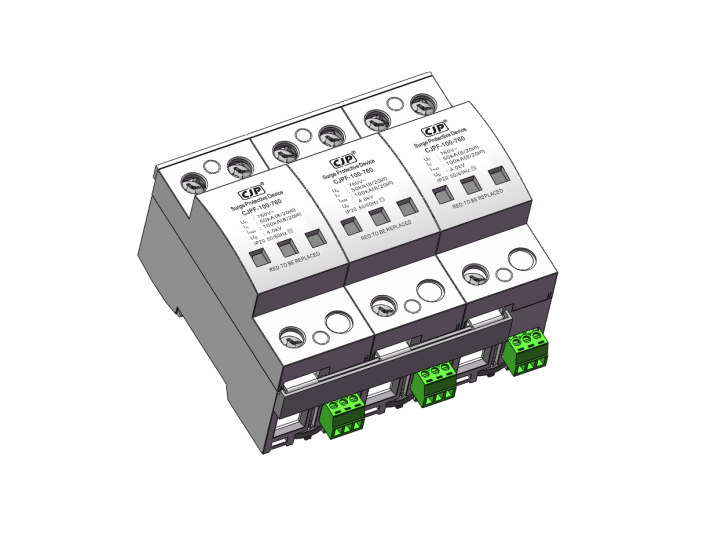

CJPF-100/3P-760-S

According to the standard

GB/T 18802.11-2020 ( IEC 61643-11:2011,MOD )

Test category

Ⅱ类（T2）

System voltage Un

400/690V

Maximum continuous working voltage Uc

760V

working frequency

50/60 Hz

Nominal discharge current In (8/20μs)

15kA

40kA

Maximum discharge current Imax (8/20μs)

40kA

100kA

Voltage protection level Up (at:In)

3.0kV

4.0kV

Maximum backup fuse

100A(gL/gG)

125A(gL/gG)

operating system

IT,TN-C

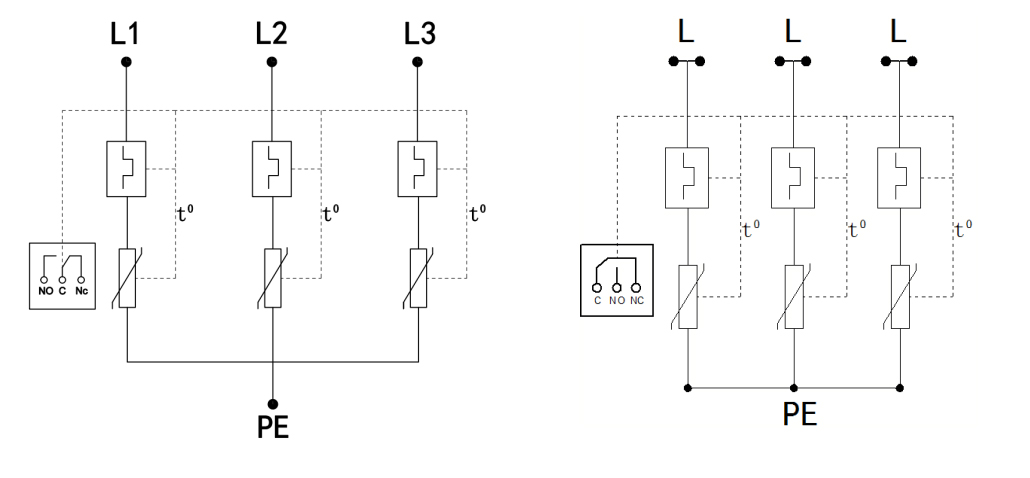

protected mode

L-PE

Access method

in parallel

Corresponding time tA

≤ 25ns

The cross-sectional area of the copper wire connected by the terminal block

6 ~ 10 mm2

16 ~ 35 mm2

Maximum wiring area of remote signaling interface

1.5 mm2

Remote signaling alarm contact strength

AC: 250 V/0.5 A   125 V/1 A    DC: 30 V/0.1 A

Torque: terminal block/remote signaling interface

2.5 N•m / 0.25 N•m

Enclosure protection class (IP code)

IP20

Work instructions

When the window shows red, it means that the product has expired and needs to be replaced!

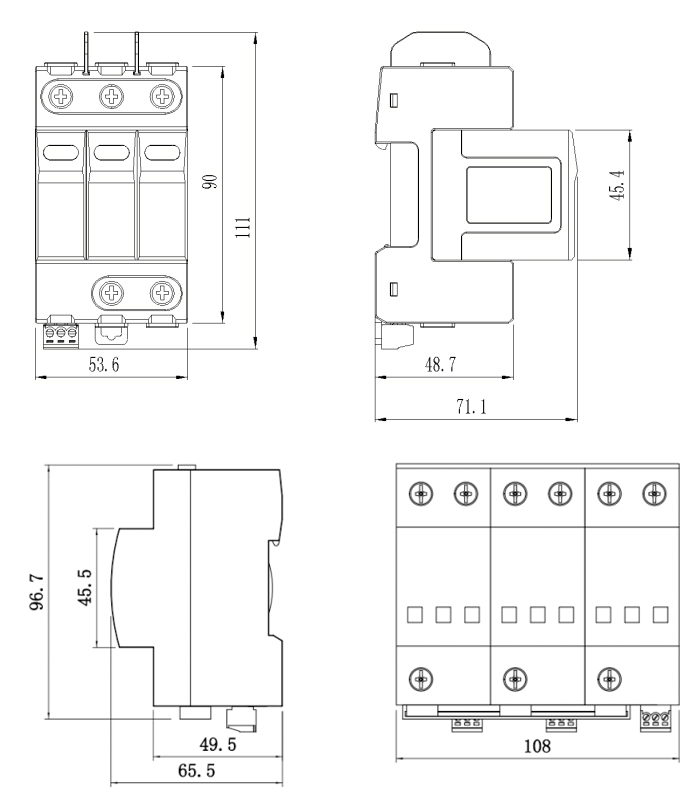

Dimensions

111 mm×53.6 mm×71 mm

96.7 mm×108 mm×65.5 mm

Installation form

35 mm standard rail

Flammability rating

UL94  V-0

range of working temperature

-40℃~  +80℃

Relative humidity range

5 %  ~ 95 %

Altitude range

-500 m  ~  +4000 m
